DeltaPAT BT & Zebra Complete Kit
call our customer service or send us an e-mail.
Metrel DeltaPAT BT Complete
Metrel have now released the complete printing solution for their ever popular Metrel DeltaPAT 3309 Appliance Tester which will significantly speed up your entire test and tag process.
Bluetooth connectivity is used to connect your DeltaPAT 3309 BT, Zebra printer and Android Smart device together. There's no need to purchase a Bluetooth dongle, as it's in-built within this unit.
This effectively allows you to use the Android device as a remote control to run tests. Once your test is complete, the Zebra Printer will print your tag on the spot and will include all the required information and Company logo. A rechargeable battery is also supplied for the printer, so you can easily take it with you when you're on the road.
When retesting items, a scanner isn't required as your Smart Device will scan the QR barcode and show all the previous test details instantly.

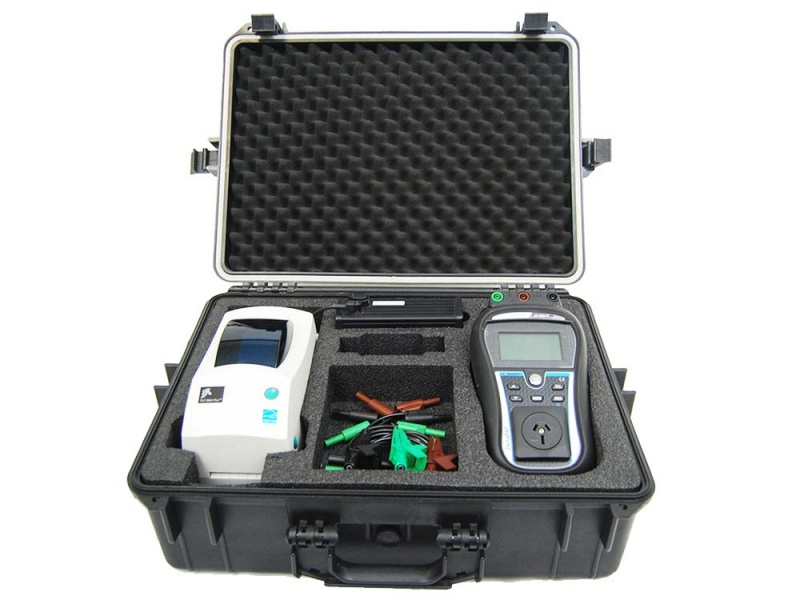

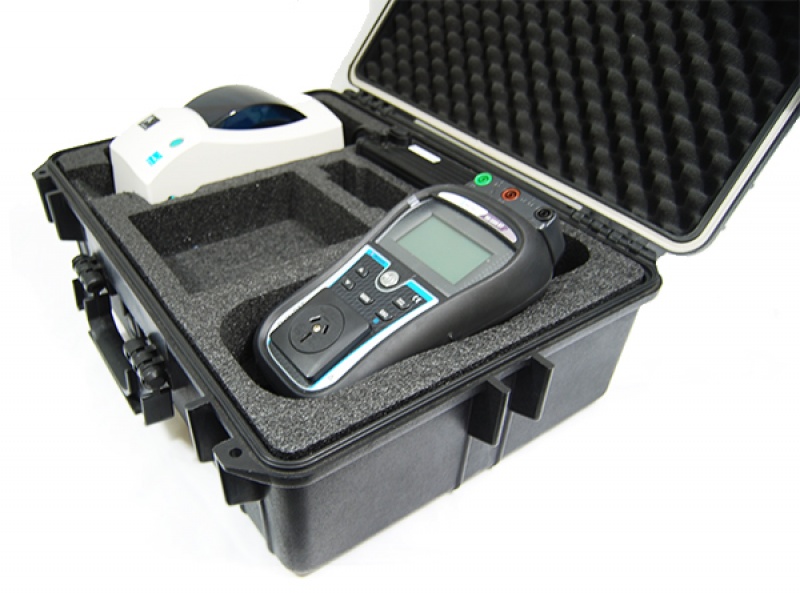

All of the components in the Complete package can easily be transported, as they perfectly fit into the custom heavy duty carry case.
The Complete Package includes:

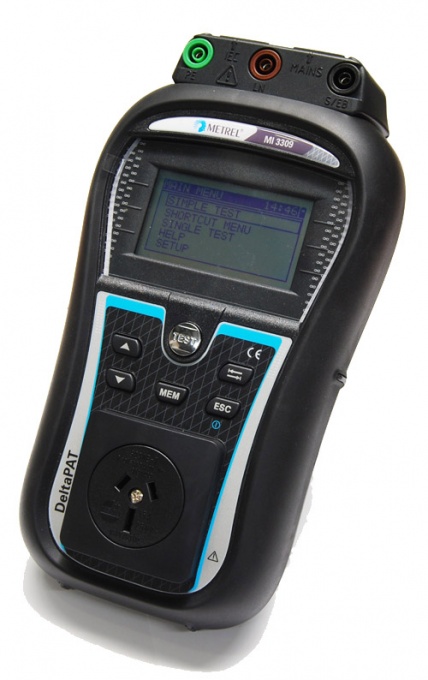

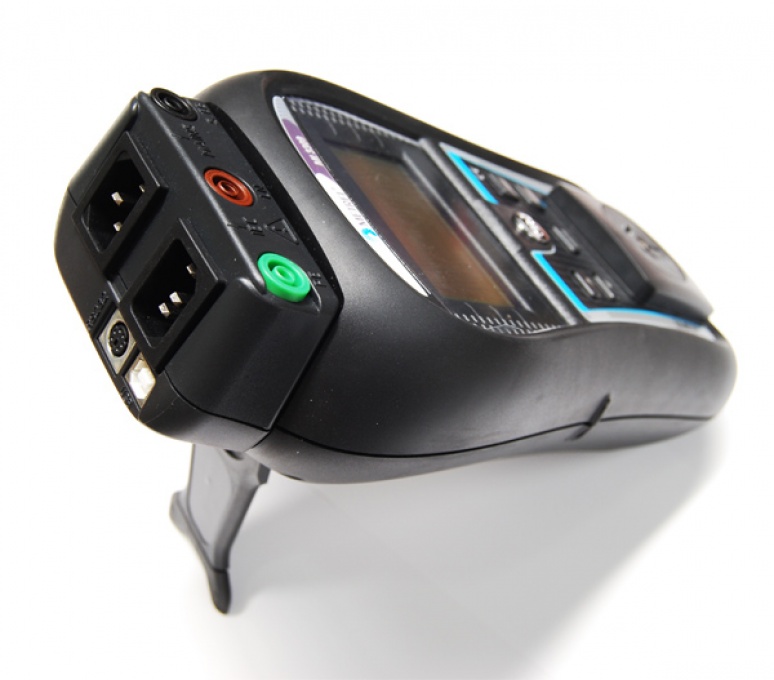

- Metrel DeltaPAT MI3309 BT Portable Appliance Tester
- Zebra TLP2824 Printer
- Company Logo Design & Upload
- 1 Roll of 250 Labels
- 1 Roll of Thermal Ribbon
- NiMH Printer Battery (rechargeable)
- Heavy Duty Case with custom insert
- Metrel ES Manager PC software as a digital download (Android software is an additional charge)
- CD Instruction manual
- All test leads
- Calibration Certificate
-
2 Years
-
CAT II / 300 V
-
Range: 80 ÷ 300 V
-
<50 V AC
-
200 mA in to 2.00 Ω
Range: 0.00-1999 Ω -
Voltage: 250 VDC or 500 VDC
Range: 0.00-199.9 MΩ -
Voltage: 230 V AC
Range: 0.00 mA ÷ 7.0 mA -
Voltage: 230 V AC
Range: 0.00 mA ÷ 7.0 mA -
10mA, 15mA, 30mA
-
Voltage: 230 V AC
Range: 0.00 kVA ÷ 4.00 kVA -
10 h
-
11.2kg
-
14cm x 8cm x 23cm
-
case IP 40/connectors IP 20
A full spec sheet is available to download
